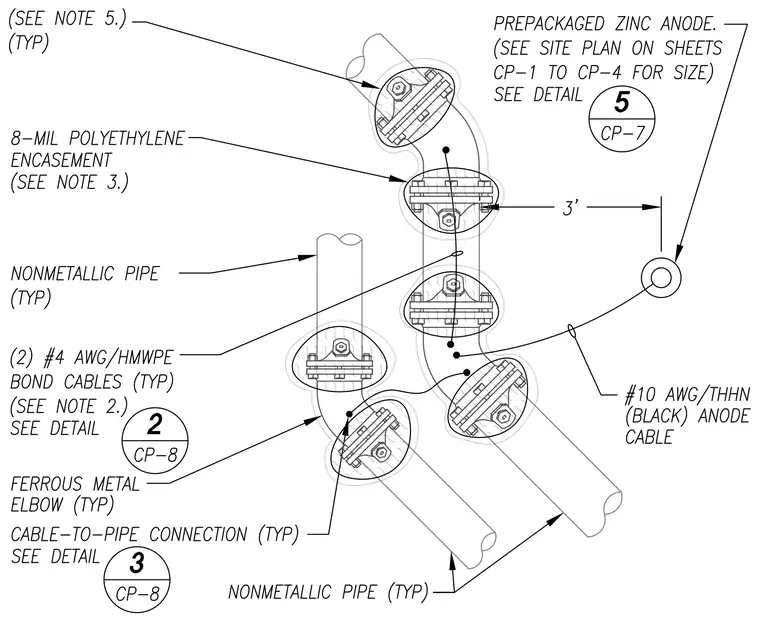

A nonmetallic pipe configuration features ferrous metal elbows joined with flanged connections wrapped in an eight-mil polyethylene encasement typically. Two number four American Wire Gauge High Molecular Weight Polyethylene bond cables bridge across the pipe joints typically, supplemented by cable-to-pipe connections at the elbows. A prepackaged zinc anode connects via a number ten American Wire Gauge Thermoplastic High Heat-Resistant Nylon-coated black anode cable, with sizing detailed on the site plan sheets and detail references pointing to related CP-7 and CP-8 drawings.
