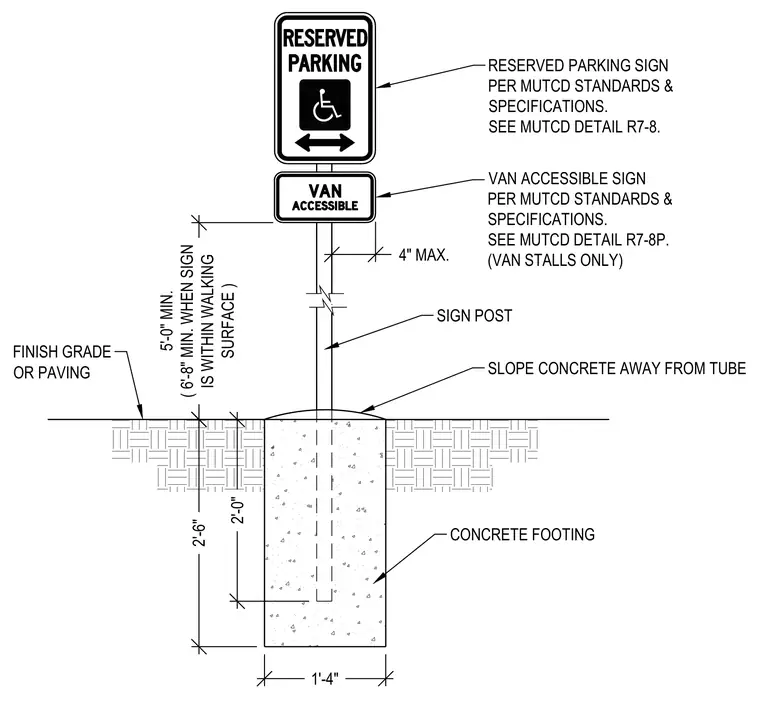

An ADA accessible parking sign is mounted on a vertical sign post embedded into a concrete footing below finish grade or paving. The concrete top is sloped away from the tube to shed water. The sign bottom is positioned at a minimum height of five feet, increasing to six feet eight inches minimum when located within a walking surface. A supplementary van accessible sign is included for van stalls per MUTCD standards.
5'-0" MIN. ( 6'-8" MIN. WHEN SIGN IS WITHIN WALKING SURFACE ) 2'-6" 2'-0" 1'-4" RESERVED PARKING SIGN PER MUTCD STANDARDS & SPECIFICATIONS. SEE MUTCD DETAIL R7-8. VAN ACCESSIBLE SIGN PER MUTCD STANDARDS & SPECIFICATIONS. SEE MUTCD DETAIL R7-8P. (VAN STALLS ONLY) SIGN POST SLOPE CONCRETE AWAY FROM TUBE CONCRETE FOOTING FINISH GRADE OR PAVING 4" MAX.
