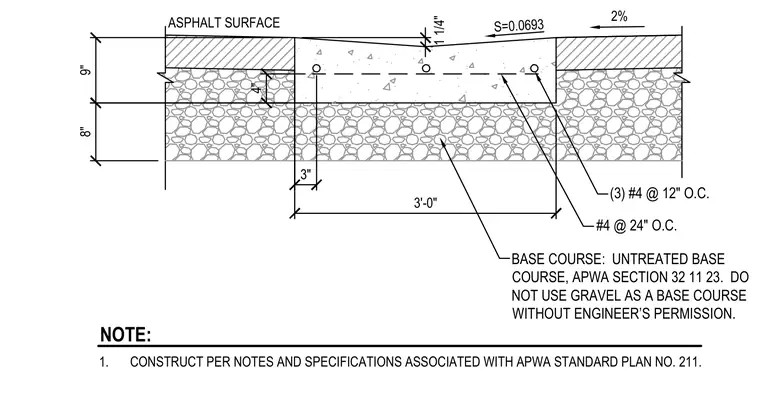

A three-foot concrete waterway section features a 2% cross-slope and a 1 1/4-inch central depression. The concrete channel is reinforced with three number 4 reinforcing bars at 12 inches on center and number 4 reinforcing bars at 24 inches on center. The assembly bears on an 8-inch untreated base course conforming to APWA Section 32 11 23, with a prohibition on gravel use without engineer permission. Adjacent asphalt surfacing transitions directly to the concrete edges with a 9-inch depth. Construction must follow APWA Standard Plan No. 211 specifications.
2% ASPHALT SURFACE 9" 8" 1 1/4" 3'-0" 3" 4" BASE COURSE: UNTREATED BASE COURSE, APWA SECTION 32 11 23. DO NOT USE GRAVEL AS A BASE COURSE WITHOUT ENGINEER’S PERMISSION. (3) #4 @ 12" O.C. #4 @ 24" O.C. S=0.0693 1. CONSTRUCT PER NOTES AND SPECIFICATIONS ASSOCIATED WITH APWA STANDARD PLAN NO. 211. NOTE:
