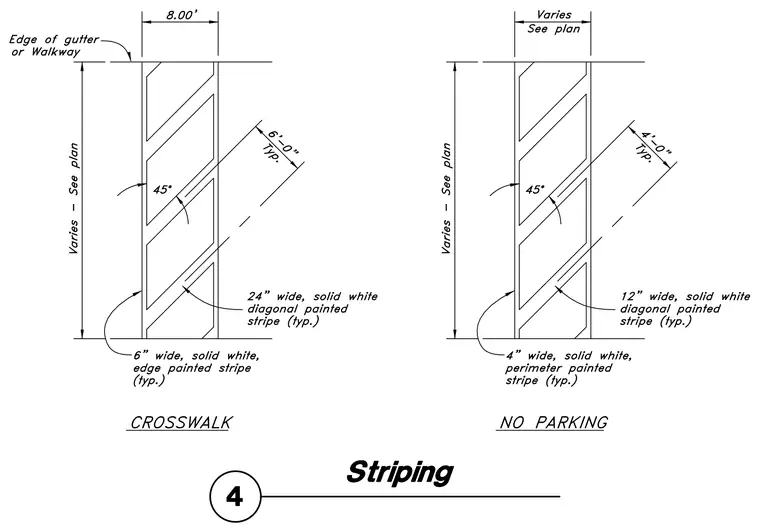

Crosswalk and no-parking pavement marking details specify dimensions and striping configurations. The crosswalk layout features a width of 8.00 feet between the edge of gutter or walkway, bound by 6-inch wide solid white edge painted stripes. Inside the perimeter, 24-inch wide solid white diagonal painted stripes are set at a 45-degree angle with a spacing of 6 feet typical. The no-parking layout uses a width that varies as shown on the plan, outlined by a 4-inch wide solid white perimeter painted stripe. Interior diagonal markings consist of 12-inch wide solid white painted stripes set at a 45-degree angle with a 4-foot typical spacing. Lengths vary as indicated per plan.
