Detectable warning surface areas must be constructed in accordance with Washington State Department of Transportation standard specifications. The surface profile is defined by specific minimum and maximum dimensions for base spacing, dome spacing, truncation dimensions, and height. Dimension C must be fifty percent through sixty-five percent of dimension D.

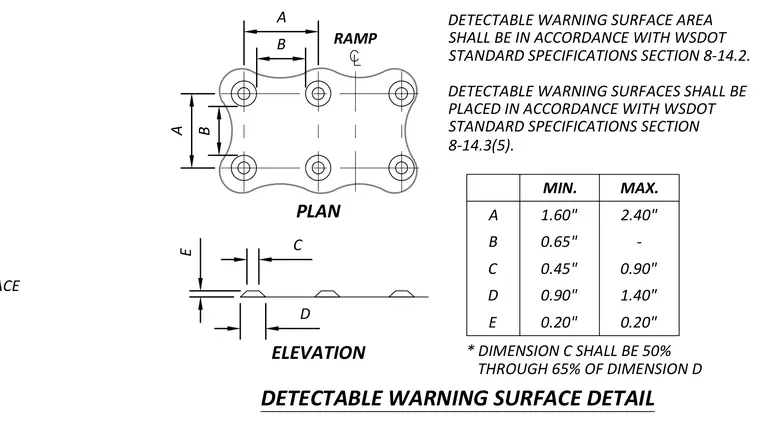

DETECTABLE WARNING SURFACE DETAIL ELEVATION C D E DETECTABLE WARNING SURFACE AREA SHALL BE IN ACCORDANCE WITH WSDOT STANDARD SPECIFICATIONS SECTION 8-14.2. DETECTABLE WARNING SURFACES SHALL BE PLACED IN ACCORDANCE WITH WSDOT STANDARD SPECIFICATIONS SECTION 8-14.3(5). PLAN RAMP A A B B * DIMENSION C SHALL BE 50% THROUGH 65% OF DIMENSION D MIN. MAX. A 1.60" 2.40" B 0.65" - C 0.45" 0.90" D 0.90" 1.40" E 0.20" 0.20" WARNING SURFACE
