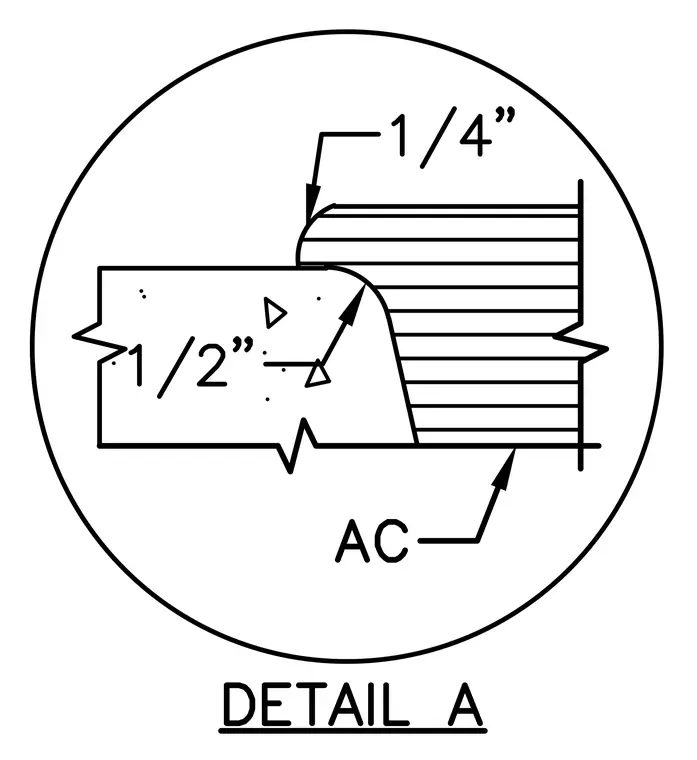

An asphalt concrete pavement assembly features a one-quarter inch vertical transition at the upper surface edge. The adjacent concrete or structural layer incorporates a one-half inch radius rounded corner. The asphalt concrete layer is labeled with the designation AC.
