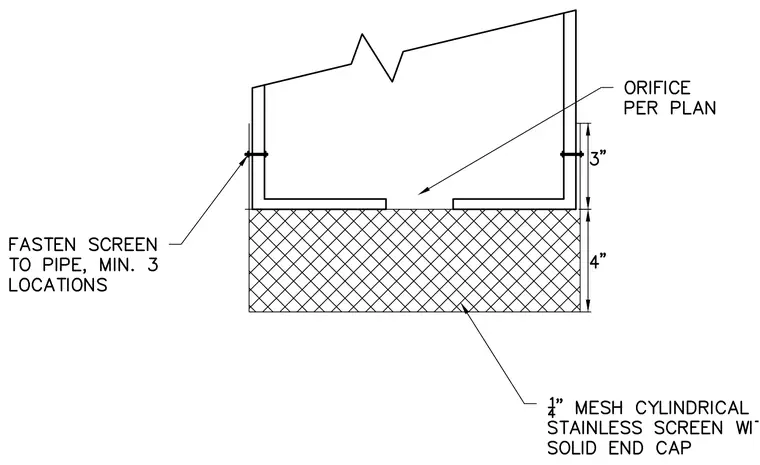

A one-quarter inch mesh cylindrical stainless screen with a solid end cap fits over a pipe opening. The screen is fastened to the pipe at a minimum of three locations. An orifice sized per plan is located at the pipe invert. Dimensions indicate a four-inch height for the screened section and a three-inch vertical spacing.
