A three-pole fifty-ampere thermal-magnetic circuit breaker is mounted on a stainless steel back panel positioned behind a hinged access door. The unit connects into the primary riser with wired terminals.

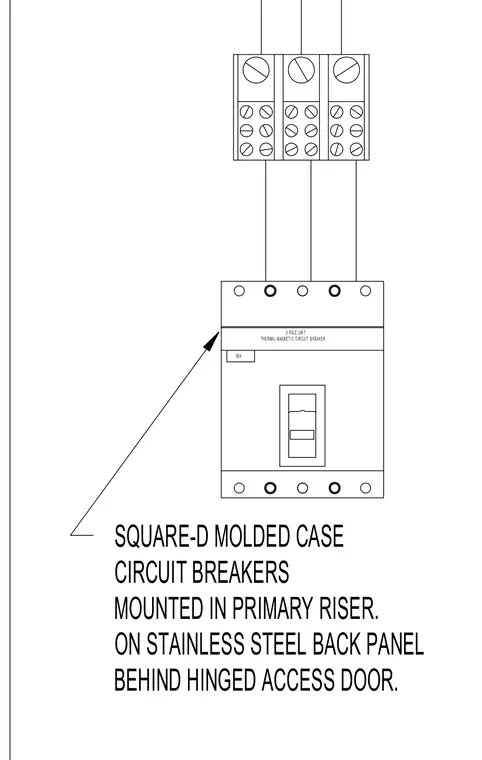

3 POLE UNI T 50A THERMAL- MAGNETI C CIRCUIT BREAKER SQUARE-D MOLDED CASE CIRCUIT BREAKERS MOUNTED IN PRIMARY RISER. ON STAINLESS STEEL BACK PANEL BEHIND HINGED ACCESS DOOR.
