A fire hydrant connects to a six-inch ductile iron pipe supplied by a main connection tee. The assembly incorporates a six-inch cast iron gate valve accessed via a standard valve box and lid. The hydrant rests on an eighteen by eighteen by six or four-inch thick concrete pad surrounded by one cubic yard of one-and-one-half-inch plus gravel. A tee thrust block is required at the elbow fitting. The top of the flange sits four inches above the top of the curb, with a concrete collar at grade measuring twenty-four square inches and a minimum of five inches thick.

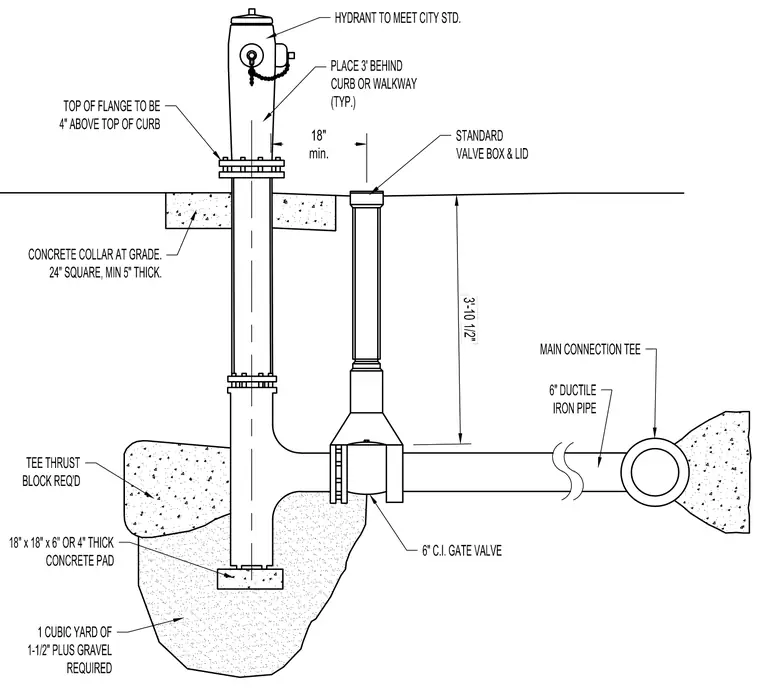

TOP OF FLANGE TO BE 4" ABOVE TOP OF CURB CONCRETE COLLAR AT GRADE. 24" SQUARE, MIN 5" THICK. HYDRANT TO MEET CITY STD. PLACE 3' BEHIND CURB OR WALKWAY (TYP.) STANDARD VALVE BOX & LID MAIN CONNECTION TEE 6" DUCTILE IRON PIPE 3'-10 1/2" TEE THRUST BLOCK REQ'D 18" x 18" x 6" OR 4" THICK CONCRETE PAD 1 CUBIC YARD OF 1-1/2" PLUS GRAVEL REQUIRED 6" C.I. GATE VALVE 18" min.
