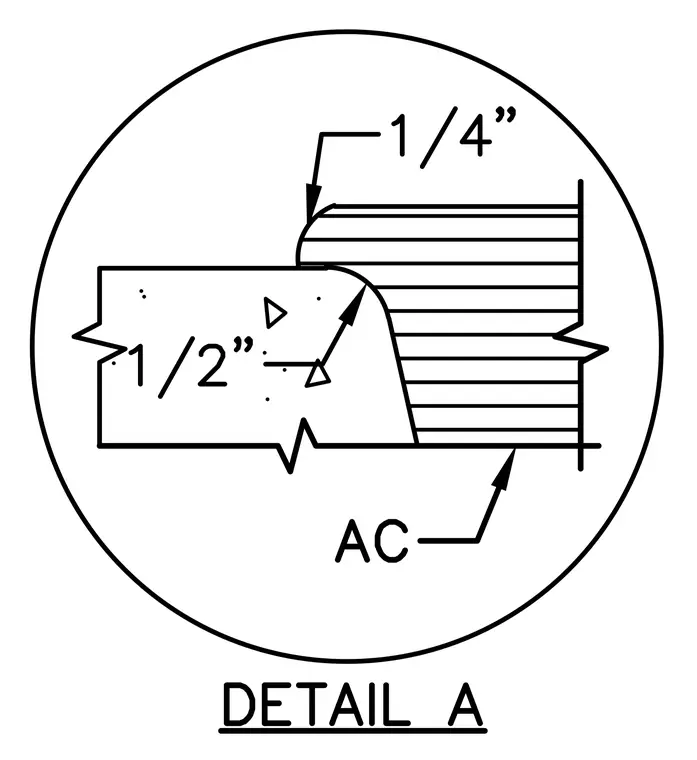

An asphalt concrete pavement edge features specific edge radii. The asphalt concrete layer has a one-quarter inch radius at the top corner and a one-half inch radius along the vertical edge. The bottom boundary is labeled as asphalt concrete.
