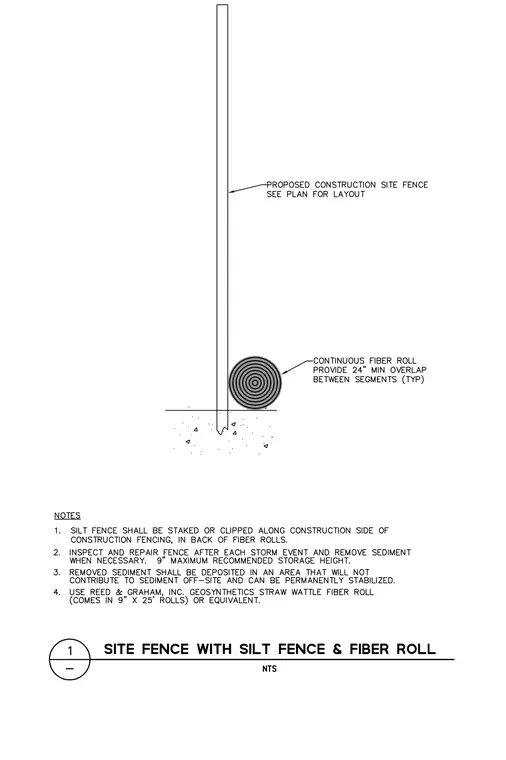

The proposed construction site fence is installed with a continuous fiber roll placed on the construction side. A twenty-four-inch minimum overlap is provided between segments typically. Silt fence is staked or clipped along the construction side in back of the fiber rolls. Notes specify inspecting and repairing the fence after each storm event with a nine-inch maximum recommended storage height, and utilizing Reed & Graham, Inc. geosynthetics straw wattle fiber roll in nine-inch by twenty-five-foot rolls or equivalent.
