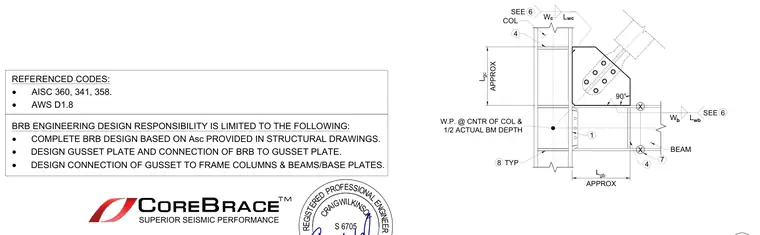

A buckling-restrained brace connection occurs at the bottom of a frame, intersecting a steel column and beam. A gusset plate connects the diagonal brace to the column and beam flanges, secured with structural bolts. The working point is located at the center of the column and half of the actual beam depth. Welds attach the gusset plate to the column and beam per structural design specifications, guided by AISC and AWS standards.
L gc APPROX COL 4 L gb APPROX 6 SEE W b BEAM 90° 6 SEE W c W.P. @ CNTR OF COL & 1/2 ACTUAL BM DEPTH X X 7 4 1 L wc L wb 8 TYP BRB ENGINEERING DESIGN RESPONSIBILITY IS LIMITED TO THE FOLLOWING: · COMPLETE BRB DESIGN BASED ON Asc PROVIDED IN STRUCTURAL DRAWINGS. · DESIGN GUSSET PLATE AND CONNECTION OF BRB TO GUSSET PLATE. · DESIGN CONNECTION OF GUSSET TO FRAME COLUMNS & BEAMS/BASE PLATES. SUPERIOR SEISMIC PERFORMANCE REFERENCED CODES: · AISC 360, 341, 358. · AWS D1.8 S 6705 R E G I S T E R E D P R O F E S S I O N A L E N G I N E E R C R A I G W I L K I N S O N
