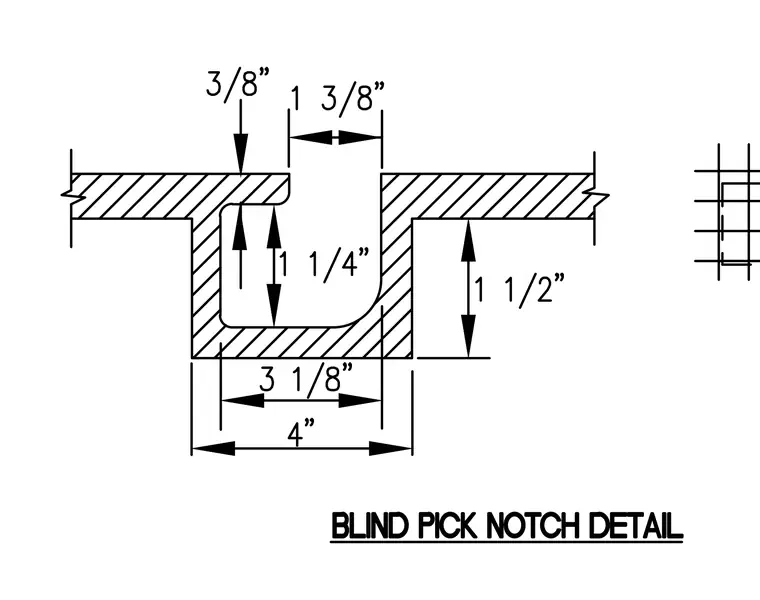

Cross-section of a blind pick notch with specific dimensional callouts. The recessed pocket features a 3/8 inch top flange thickness, a 1-3/8 inch opening width, and a 1-1/4 inch internal height. The overall depth measures 1-1/2 inches with a bottom width of 3-1/8 inches and an overall outer width of 4 inches.
