A new sanitary pipe penetrates an existing concrete manhole wall through a core-drilled opening with a concrete manhole adapter and a minimum twelve-inch long stub. Non-shrink grout seals around the pipe opening. The core cut is executed without spalling or damage to the existing structure. The pipe connection utilizes a flexible boot connector, and the existing invert channel is re-shaped to accommodate the new invert.

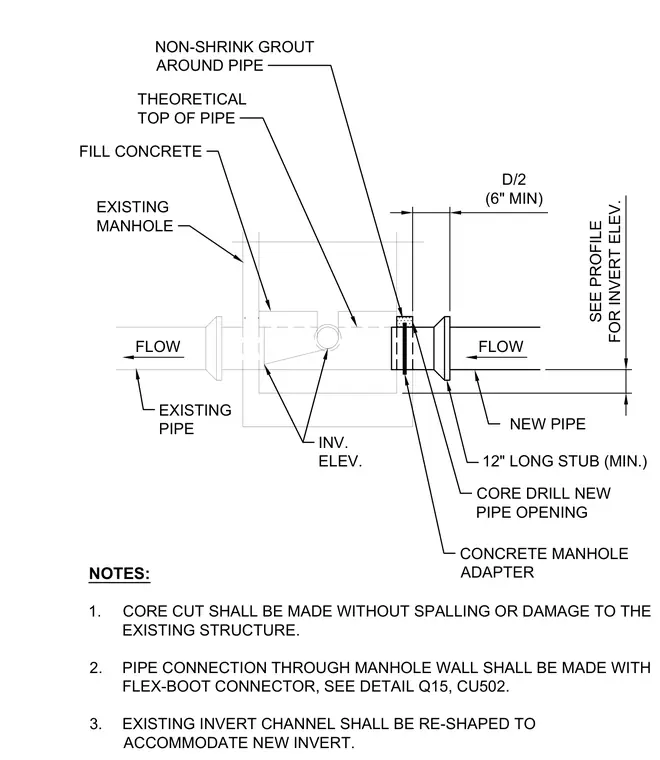

FLOW CONCRETE MANHOLE ADAPTER 12" LONG STUB (MIN.) FLOW NEW PIPE SEE PROFILE FOR INVERT ELEV. D/2 (6" MIN) CORE DRILL NEW PIPE OPENING THEORETICAL TOP OF PIPE FILL CONCRETE INV. ELEV. EXISTING MANHOLE EXISTING PIPE NON-SHRINK GROUT AROUND PIPE NOTES: 1. CORE CUT SHALL BE MADE WITHOUT SPALLING OR DAMAGE TO THE EXISTING STRUCTURE. 2. PIPE CONNECTION THROUGH MANHOLE WALL SHALL BE MADE WITH FLEX-BOOT CONNECTOR, SEE DETAIL Q15, CU502. 3. EXISTING INVERT CHANNEL SHALL BE RE-SHAPED TO ACCOMMODATE NEW INVERT.
