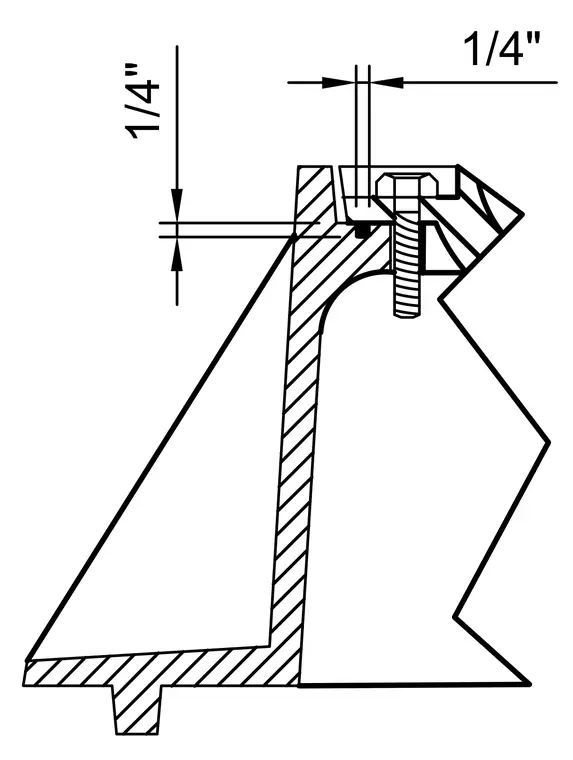

A T-gasket assembly featuring a mechanical fastener secured through a top retaining plate with a quarter-inch clearance gap. The connection incorporates a compressed seal set into a profiled groove with a quarter-inch vertical and horizontal spacing. The assembly interfaces directly with structural framing elements secured by threaded bolts.
