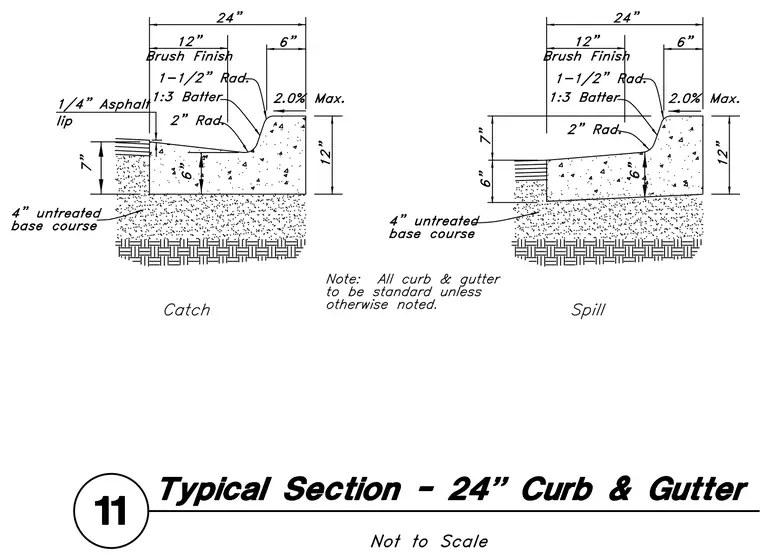

A standard twenty-four-inch concrete curb and gutter assembly features both catch and spill configurations. The profile incorporates a twelve-inch gutter width with a brush finish, a one-and-one-half-inch top radius, a one-to-three batter, a two-inch gutter radius, and a total curb height of twelve inches. The gutter pan slopes at a maximum of two percent toward the flow line. The catch profile accommodates a seven-inch vertical face adjacent to a one-quarter-inch asphalt lip. Both configurations bear upon a four-inch untreated base course over compacted subgrade.
