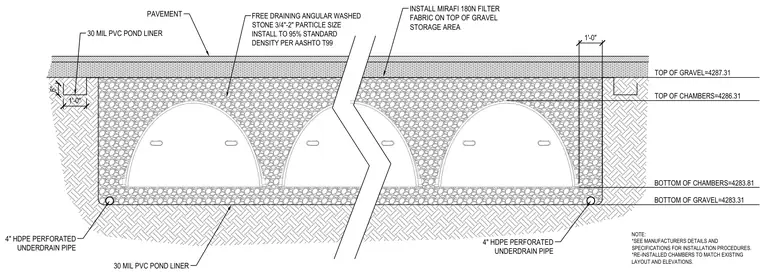

An underground detention basin section shows re-installed chambers bedded in free-draining angular washed stone with a 3/4-inch to 2-inch particle size, compacted to 95% standard density per AASHTO T99. The stone bed is enclosed by a 30-mil PVC pond liner along the bottom and sides, topped with Mirafi 180N filter fabric beneath the pavement structure. A 4-inch high-density polyethylene perforated underdrain pipe is installed at the bottom edges of the gravel storage area. Elevation markers define the bottom and top of the gravel at 4283.31 and 4287.31 respectively, and the bottom and top of the chambers at 4283.81 and 4286.31.
NOTE: *SEE MANUFACTURERS DETAILS AND SPECIFICATIONS FOR INSTALLATION PROCEDURES. *RE-INSTALLED CHAMBERS TO MATCH EXISTING LAYOUT AND ELEVATIONS. BOTTOM OF GRAVEL=4283.31 BOTTOM OF CHAMBERS=4283.81 TOP OF CHAMBERS=4286.31 TOP OF GRAVEL=4287.31 1'-0" 6" FREE DRAINING ANGULAR WASHED STONE 3/4"-2" PARTICLE SIZE INSTALL TO 95% STANDARD DENSITY PER AASHTO T99 1'-0" PAVEMENT 30 MIL PVC POND LINER 30 MIL PVC POND LINER INSTALL MIRAFI 180N FILTER FABRIC ON TOP OF GRAVEL STORAGE AREA 4" HDPE PERFORATED UNDERDRAIN PIPE 4" HDPE PERFORATED UNDERDRAIN PIPE
