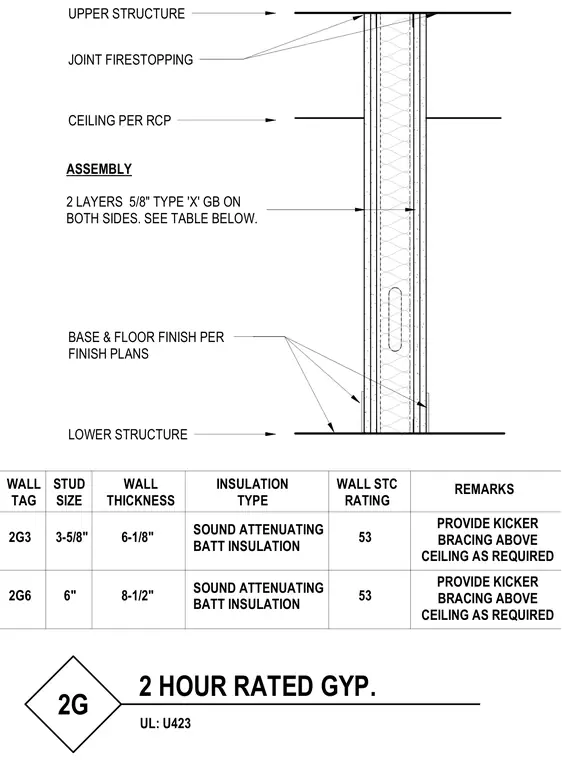

A two-hour fire-rated gypsum wall assembly designated as Underwriters Laboratories assembly UL U423 comprises metal studs framed between an upper and lower structure, surfaced on both sides with two layers of 5/8-inch Type X gypsum board. Cavities are filled with sound attenuating batt insulation, achieving a Sound Transmission Class rating of 53. Joint firestopping is detailed at the head of the wall intersecting the upper structure, and kicker bracing is provided above the ceiling as required.
2 HOUR RATED GYP. 2G UPPER STRUCTURE CEILING PER RCP BASE & FLOOR FINISH PER FINISH PLANS LOWER STRUCTURE WALL THICKNESS STUD SIZE INSULATION TYPE WALL STC RATING REMARKS 6-1/8" 3-5/8" 8-1/2" 6" SOUND ATTENUATING BATT INSULATION 53 SOUND ATTENUATING BATT INSULATION 53 PROVIDE KICKER BRACING ABOVE CEILING AS REQUIRED PROVIDE KICKER BRACING ABOVE CEILING AS REQUIRED UL: U423 ASSEMBLY 2 LAYERS 5/8" TYPE 'X' GB ON BOTH SIDES. SEE TABLE BELOW. WALL TAG 2G3 2G6 JOINT FIRESTOPPING
