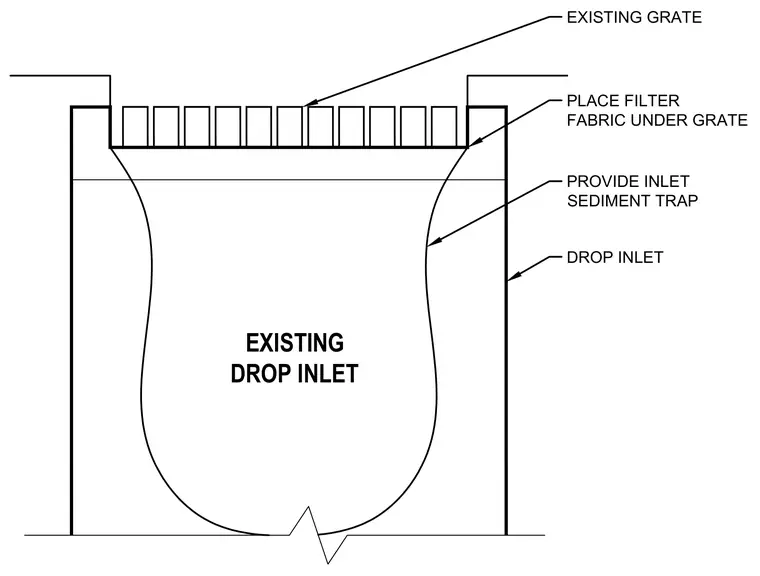

An existing drop inlet structure accommodates an existing grate with a layer of filter fabric positioned directly underneath. An inlet sediment trap is provided within the drop inlet structure to capture debris and sediment. The assembly modifies existing drainage infrastructure for sediment and erosion control.
PLACE FILTER FABRIC UNDER GRATE PROVIDE INLET SEDIMENT TRAP DROP INLET EXISTING DROP INLET EXISTING GRATE
