The pavement assembly consists of a six-inch minimum concrete slab reinforced with number four bars at twelve inches on center each way or six-by-six W-ten by W-ten welded wire flat sheets. This rests upon a six-inch minimum Class II aggregate base compacted to ninety-five percent per ASTM D1557. The base is supported by a twelve-inch minimum compacted subgrade also compacted to ninety-five percent per ASTM D1557.

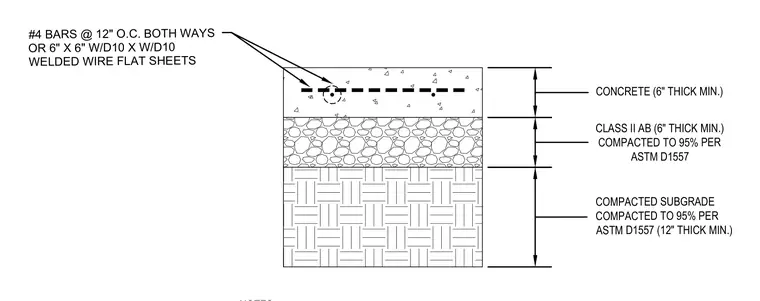

CONCRETE (6" THICK MIN.) CLASS II AB (6" THICK MIN.) COMPACTED TO 95% PER ASTM D1557 COMPACTED SUBGRADE COMPACTED TO 95% PER ASTM D1557 (12" THICK MIN.) #4 BARS @ 12" O.C. BOTH WAYS OR 6" X 6" W/D10 X W/D10 WELDED WIRE FLAT SHEETS
