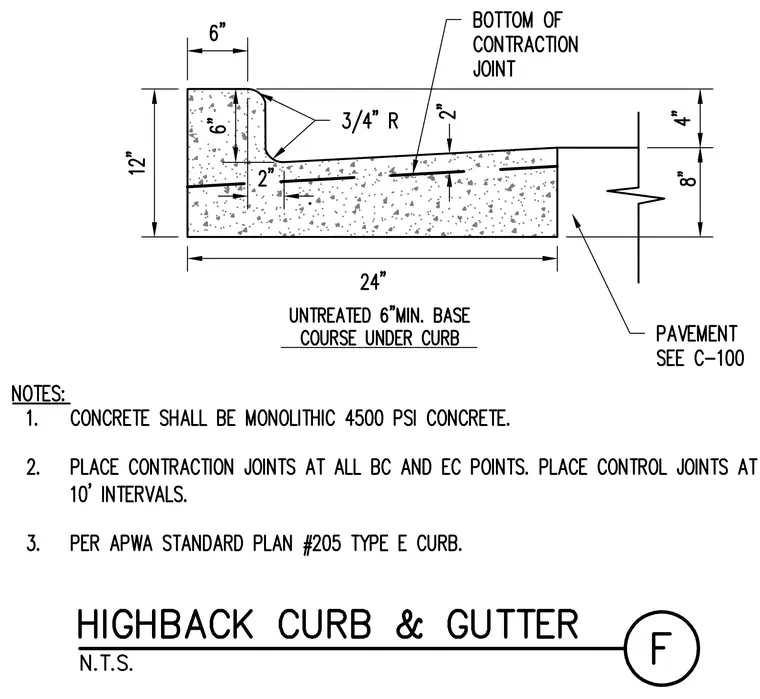

A monolithic 4500 PSI concrete highback curb and gutter rests on an untreated 6-inch minimum base course. The curb features a 6-inch top width, a total height of 12 inches, and a 24-inch overall gutter width with a 3/4-inch radius transition. Contraction joints are located at the bottom of the section with specified placement intervals per APWA standard plan 205 type E curb requirements.
