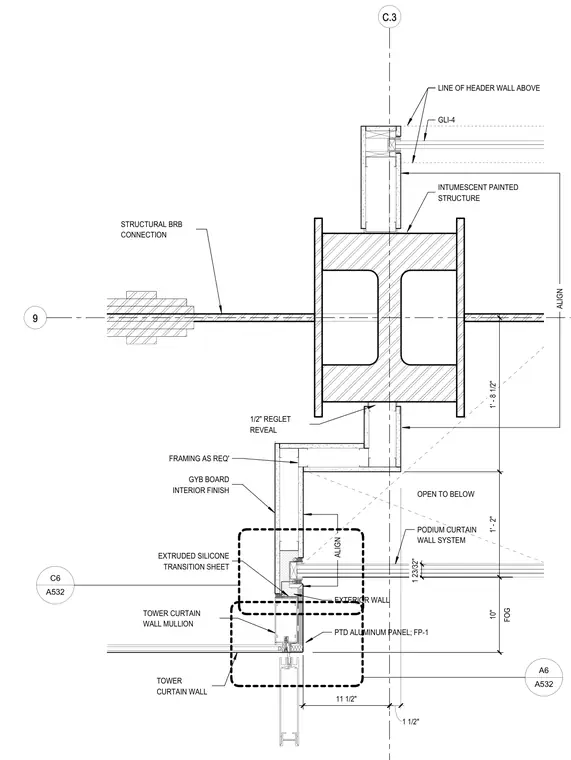

Exterior wall and tower curtain wall intersection at the podium level. The assembly features an intumescent painted structural steel column aligning with a grid line and connecting to a structural buckling-restrained brace. A painted aluminum panel and a podium curtain wall system tie into the framing as required, backed by gypsum board interior finish with a one-half inch reglet reveal. An extruded silicone transition sheet provides weather sealing at the junction between the tower curtain wall mullion and the exterior wall.
9 C.3 PODIUM CURTAIN WALL SYSTEM EXTERIOR WALL TOWER CURTAIN WALL TOWER CURTAIN WALL MULLION GYB BOARD INTERIOR FINISH 1/2" REGLET REVEAL 1 2 3 / 3 2 " ALIGN STRUCTURAL BRB CONNECTION 1 ' - 8 1 / 2 " 1 ' - 2 " F O G 1 0 " A532 A6 A532 C6 OPEN TO BELOW FRAMING AS REQ' EXTRUDED SILICONE TRANSITION SHEET INTUMESCENT PAINTED STRUCTURE PTD ALUMINUM PANEL; FP-1 1 1 1 / 2 " 1 1 / 2 " ALIGN LINE OF HEADER WALL ABOVE GLI-4
