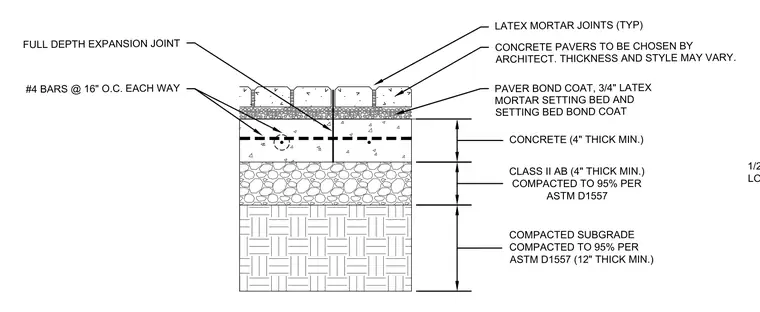

Concrete pavers are set over a three-quarter inch latex mortar setting bed with latex mortar joints and a paver bond coat. The setting bed rests on a minimum four-inch thick concrete slab reinforced with number four bars at sixteen inches on center each way. A full-depth expansion joint featuring a one-half inch diameter smooth dowel, eighteen inches long, divides the assembly. Below the concrete slab lies a minimum four-inch thick Class II aggregate base compacted to ninety-five percent per ASTM D1557. The entire assembly bears on a compacted subgrade compacted to ninety-five percent per ASTM D1557 at a minimum thickness of twelve inches.
CONCRETE (4" THICK MIN.) CLASS II AB (4" THICK MIN.) COMPACTED TO 95% PER ASTM D1557 COMPACTED SUBGRADE COMPACTED TO 95% PER ASTM D1557 (12" THICK MIN.) #4 BARS @ 16" O.C. EACH WAY PAVER BOND COAT, 3/4" LATEX MORTAR SETTING BED AND SETTING BED BOND COAT LATEX MORTAR JOINTS (TYP) CONCRETE PAVERS TO BE CHOSEN BY ARCHITECT. THICKNESS AND STYLE MAY VARY. 1/2" DIA. SMOOTH DOWEL, 18" LONG AT ALL EXPANSION JOINTS FULL DEPTH EXPANSION JOINT
