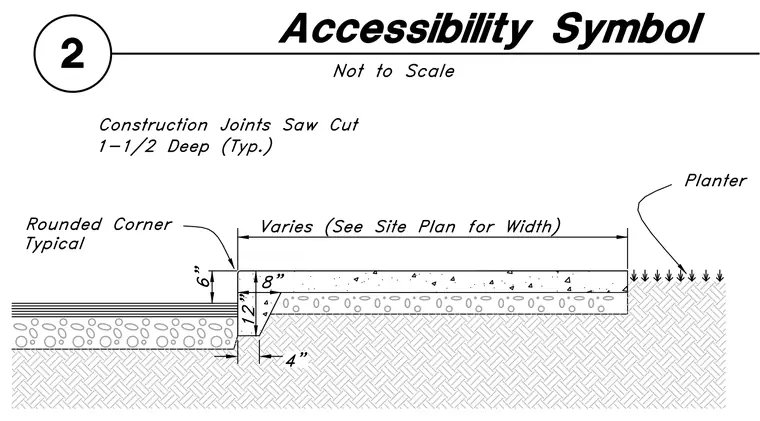

An 8-inch thick concrete accessibility pad sits on a 12-inch subbase aggregate layer, bounded by a planter on one side and a rounded corner with a 6-inch vertical face on the other. A thickened concrete edge extends downward by 4 inches with an 8-inch base width at the perimeter. Construction joints require a saw cut 1-1/2 inches deep typically, and the total pad width varies per site plan.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
