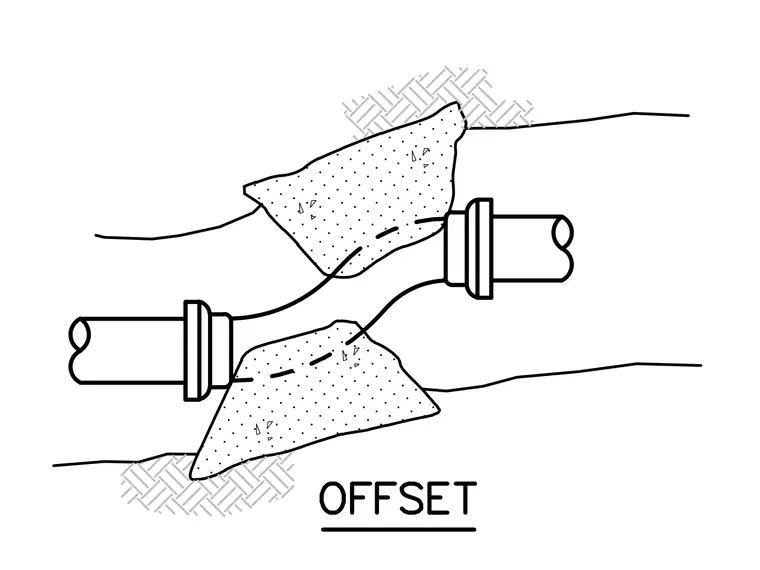

An offset utility pipe transitions between two parallel alignment paths using mechanical fittings and connected pipe segments. The trench includes compacted subgrade bedding and backfill material supporting the pipe assembly.
