Structural · C-2XERK

Typical Connection at Brace Top and Bottom

Elements

Columns Beams Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Bolted Connection

About this detail

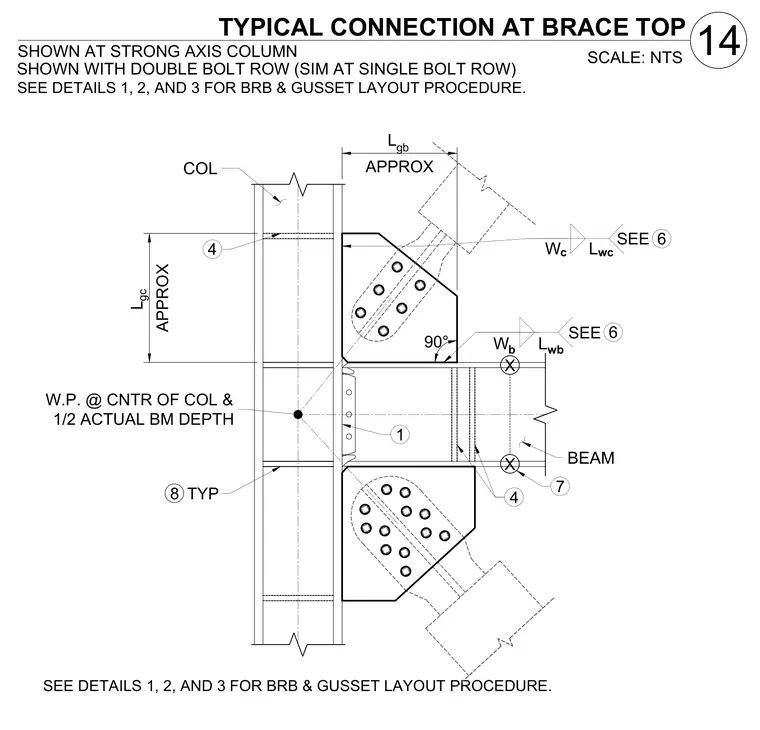

A typical bracing connection occurs at the top of a column and beam framing intersection, located at a strong axis column with a double bolt row configuration. Gusset plates connect the structural brace members to both the column and the beam flanges, with work points located at the centerline of the column and one-half of the actual beam depth. Welds denoted by Wc and Wb secure the gusset plates to the respective structural members, and layout procedures reference additional project details.
