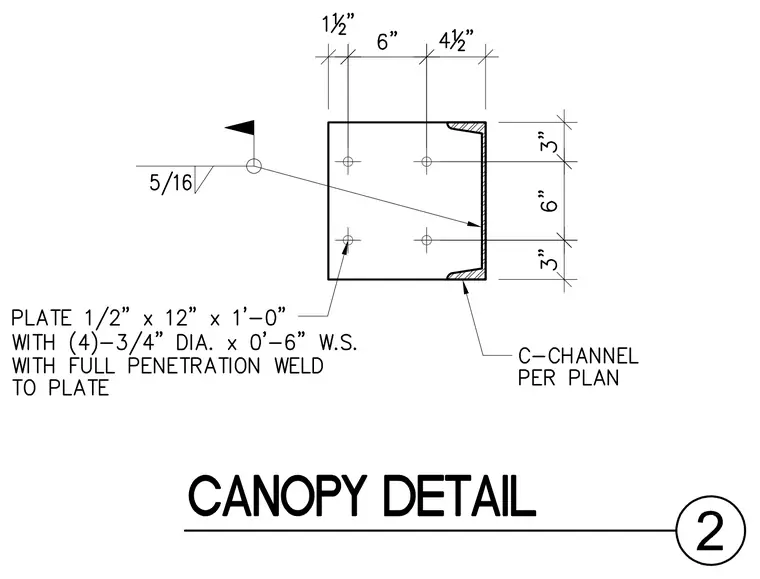

A one-half-inch by twelve-inch by one-foot-zero-inch steel plate connects to a C-channel sized per plan using a five-sixteenth-inch fillet weld and a field weld symbol. The assembly incorporates four three-quarter-inch diameter by zero-foot-six-inch welded studs welded to the plate with full penetration welds. Dimensional callouts establish a symmetrical layout for the stud locations across the plate face.
