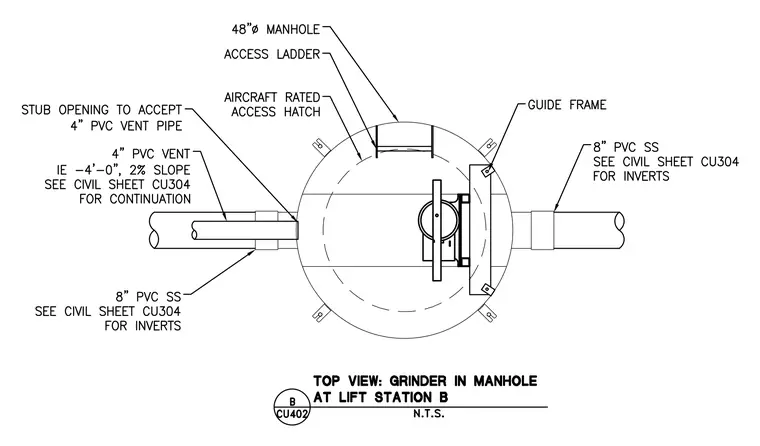

A forty-eight-inch diameter manhole contains an internal grinder pump mounted with a guide frame and an aircraft-rated access hatch with an access ladder. An eight-inch polyvinyl chloride sanitary sewer pipe connects to the manhole, with inverts referenced to civil sheet CU304. A four-inch polyvinyl chloride vent pipe connects via a stub opening, with an invert of negative four feet zero inches and a two percent slope. An additional eight-inch polyvinyl chloride sanitary sewer pipe stub is provided for continuation.
