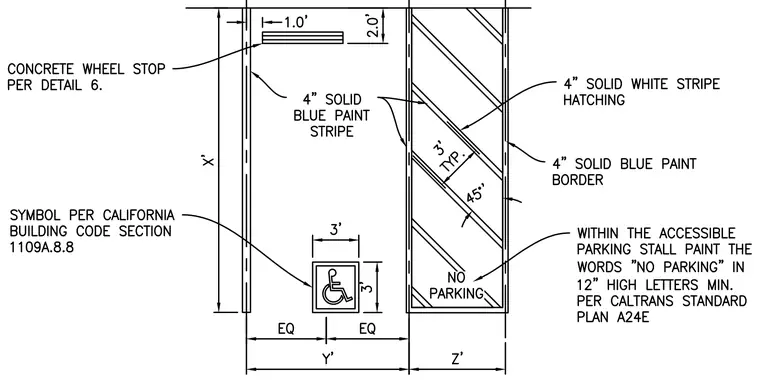

An accessible parking stall features a four-inch solid blue paint border and a four-inch solid blue paint stripe, paired with an adjacent access aisle marked by four-inch solid white stripe hatching at a forty-five-degree angle and spaced at three feet typical. The parking stall includes a concrete wheel stop set two feet from the head of the stall and one foot offset from the side stripe, as well as an international symbol of accessibility complying with California Building Code Section 1109A.8.8. The adjacent access aisle features the words NO PARKING painted within the stall in twelve-inch high letters minimum per Caltrans Standard Plan A24E.
