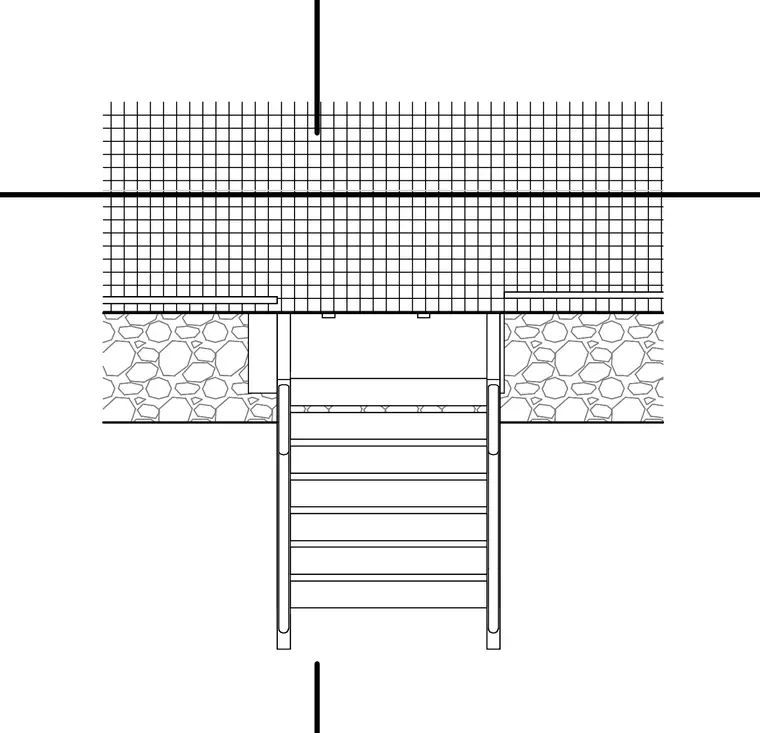

A civil construction assembly features a metal grating surface intersected by orthogonal grid lines and structural framing elements. Masonry or stone foundation supports flank the central opening and a ladder or step structure extends downwards. Structural lines cross the grid pattern horizontally and vertically to establish alignment.
