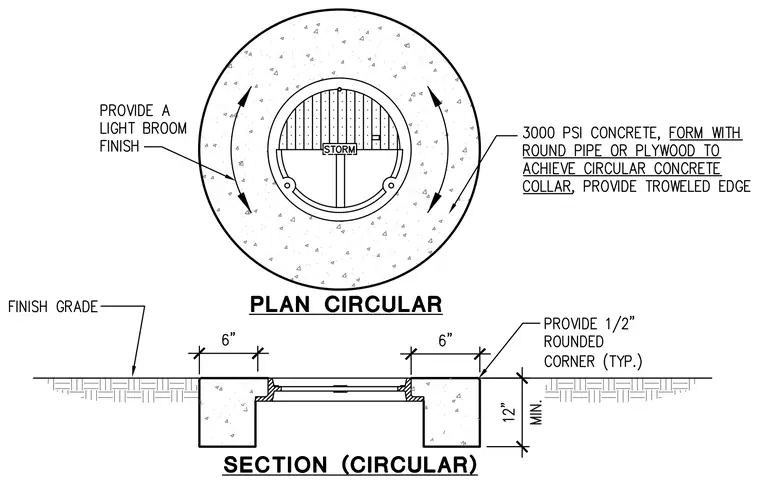

A circular 3000 PSI concrete collar surrounds a storm drain manhole casting, framed with round pipe or plywood and finished with a troweled edge and a light broom finish. The collar extends twelve inches minimum below finish grade with six-inch horizontal extensions outward from the casting flange, featuring a one-half-inch rounded corner typically at the top exterior edge.
