PCC Pavement Double Sawcut and Removal Detail

Materials

Glass / Glazing

Elements

Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

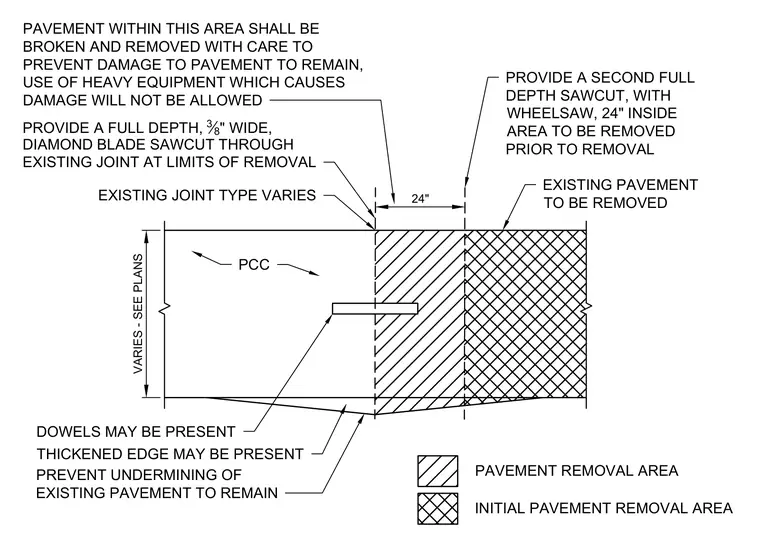

Provide a full-depth 3/8-inch wide diamond blade sawcut through the existing joint at the limits of removal. Provide a second full-depth sawcut with a wheelsaw 24 inches inside the area to be removed prior to removal. Pavement within the 24-inch area shall be broken and removed with care to prevent damage to the pavement to remain, and heavy equipment causing damage will not be allowed. Dowels and a thickened edge may be present at the existing joint, and precautions must be taken to prevent undermining of the existing pavement to remain.
