A six-inch concrete wearing surface is placed over a six-inch untreated base course compacted per the geotechnical report and specifications. Below the base course, properly prepared native or subgrade soils and structural fill vary in depth and are compacted according to project specifications. The entire assembly bears upon undisturbed earth properly prepared to support the pavement structure.

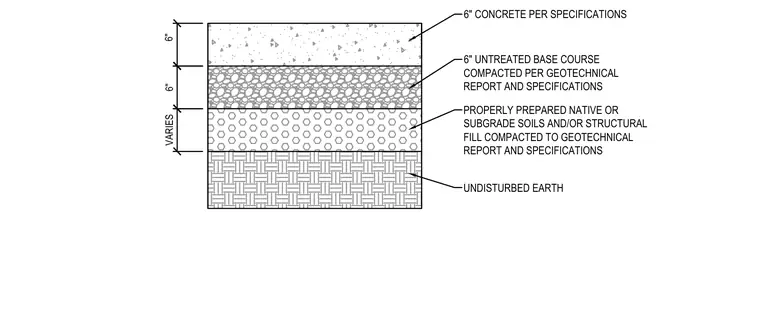

6" VARIES 6" 6" CONCRETE PER SPECIFICATIONS 6" UNTREATED BASE COURSE COMPACTED PER GEOTECHNICAL REPORT AND SPECIFICATIONS UNDISTURBED EARTH PROPERLY PREPARED NATIVE OR SUBGRADE SOILS AND/OR STRUCTURAL FILL COMPACTED TO GEOTECHNICAL REPORT AND SPECIFICATIONS
