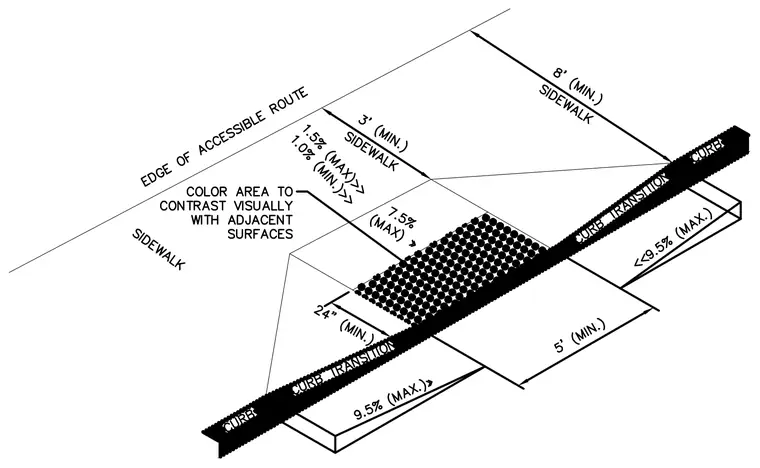

An isometric layout of a curb ramp incorporates a 24-inch minimum depth truncated dome tactile warning surface that spans the width of the pedestrian access route. The ramp slope reaches a maximum of 7.5%, bordered by side flares with a 9.5% maximum slope. The adjacent sidewalk maintains a width of 3 feet minimum with a cross slope ranging between 1.0% minimum and 1.5% maximum. The tactile warning area must contrast visually with adjacent sidewalk surfaces to meet accessibility standards.
