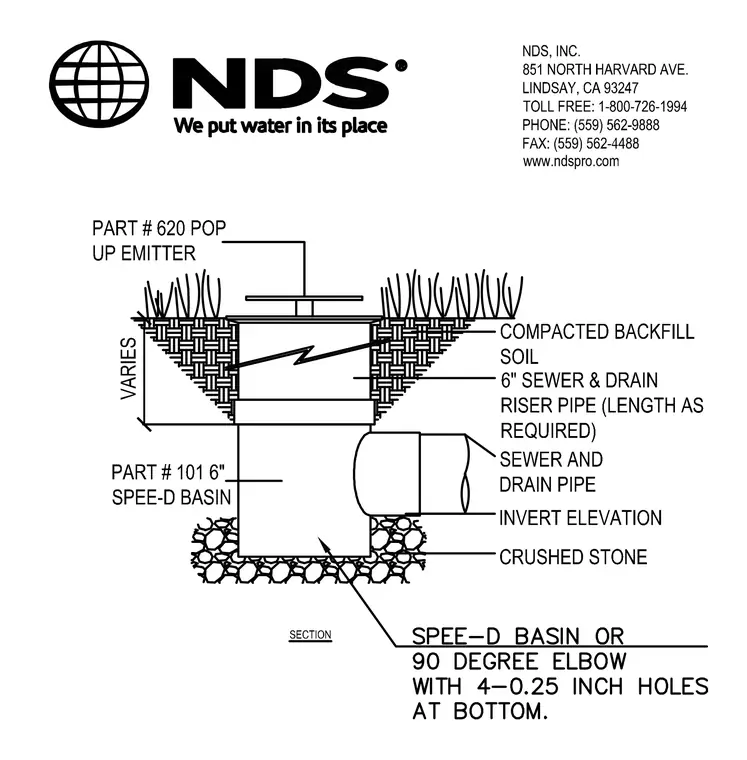

A part number 620 pop-up emitter connects to a six-inch sewer and drain riser pipe of variable length. The riser attaches to a part number 101 six-inch Spee-D basin, which rests on crushed stone bedding. A sewer and drain pipe ties into the side of the basin at a specified invert elevation, surrounded by compacted backfill soil and turf.
