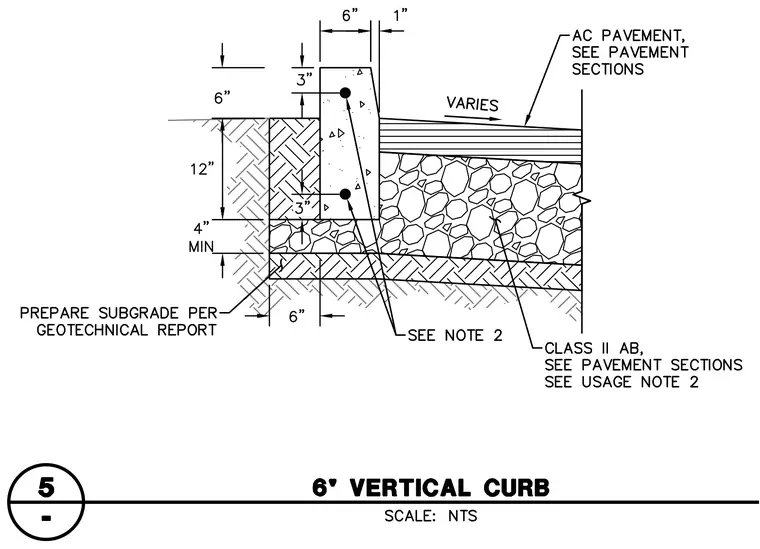

A six-inch vertical concrete curb bears on a four-inch minimum Class II aggregate base layer over a prepared subgrade. Asphalt concrete pavement abuts the curb with varying slope, also supported by Class II aggregate base. The curb features two reinforcing bars positioned per structural notes. Subgrade preparation complies with recommendations from the geotechnical report.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
