Accessibility code diagrams defining minimum clear width dimensions for various door configurations. Hinged doors require a thirty-two inch minimum clear width measured at a ninety degree open position. Sliding and folding doors maintain the same thirty-two inch minimum clear opening. Doorways without doors require a thirty-six inch minimum clear width when the depth exceeds twenty-four inches.

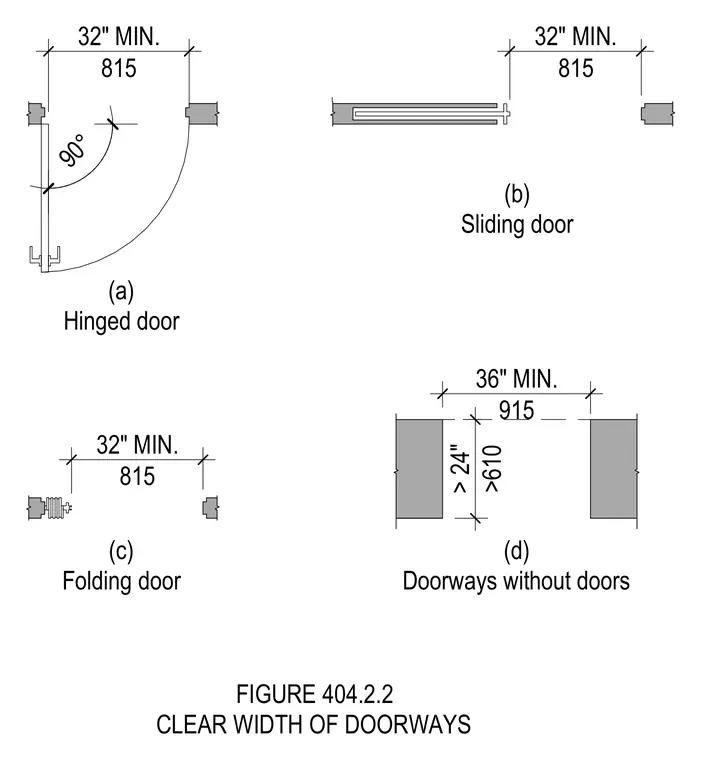

(b) Sliding door (a) Hinged door (c) Folding door (d) Doorways without doors FIGURE 404.2.2 CLEAR WIDTH OF DOORWAYS 815 32" MIN. >610 > 24" 915 36" MIN. 815 32" MIN. 90° 815 32" MIN.
