Architectural · A-ZZR5N

Aluminum Fin and Mullion Accent Bar Detail

Materials

About this detail

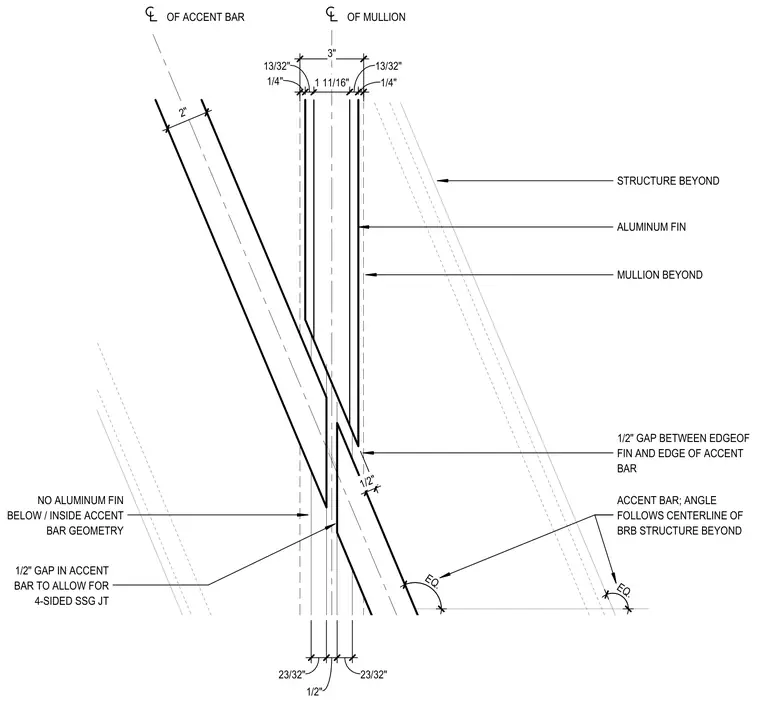

Alignment and spacing of an aluminum fin, curtain wall mullion, and an angled accent bar relative to the building structure beyond. A one-half-inch gap separates the edge of the aluminum fin from the accent bar of the mullion, and a one-half-inch gap in the accent bar accommodates a four-sided structural silicone glazed joint. The accent bar angle follows the centerline of the buckling-restrained braced frame structure located beyond. Dimensions delineate centerlines, thicknesses, and clearances for the aluminum profiles and sealant joints.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
