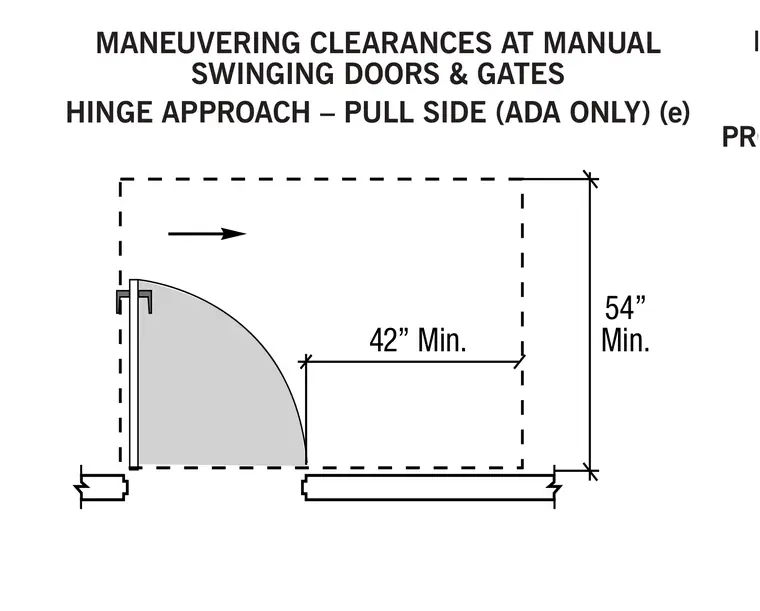

Manual swinging doors and gates equipped with both a closer and a latch require a minimum fifty-four inch depth perpendicular to the doorway. The hinge approach on the pull side requires a minimum forty-two inch clear floor space extending past the latch side.
54” Min. 42” Min. HINGE APPROACH – PULL SIDE (ADA ONLY) (e) MANEUVERING CLEARANCES AT MANUAL SWINGING DOORS & GATES PROVIDED WITH BOTH CLOSER AND LATCH (g) MANEUVERING CLEARANCES AT MANUAL
