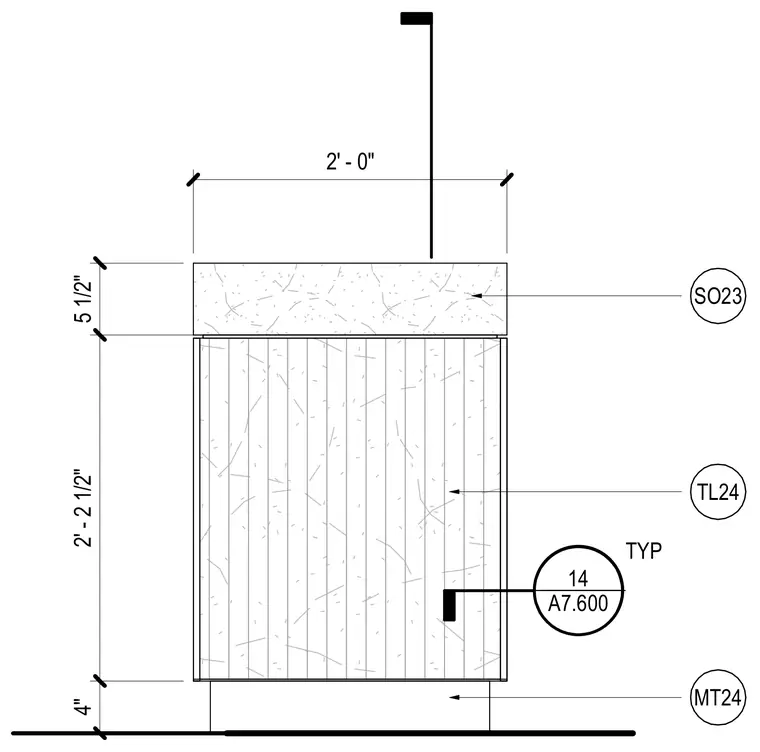

A vertical partition element designated as TL24 features a concrete member designated as SO23 at the top. The assembly has a width of two feet and a height dimension of two feet two and one-half inches below the concrete cap. A base element designated as MT24 sits four inches above the finished floor level. Typical connections reference detail fourteen on sheet A7.600.
