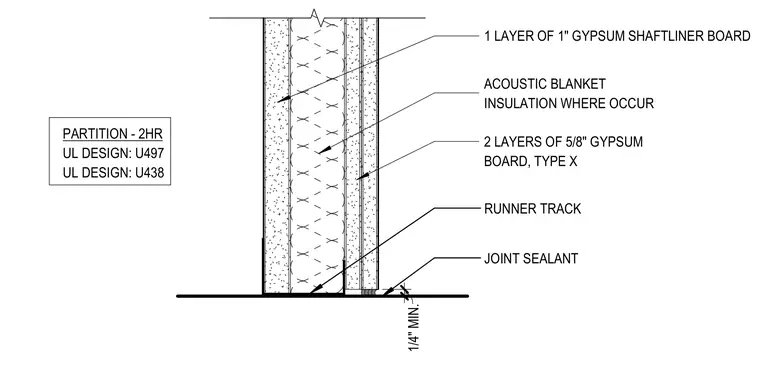

This assembly details a two-hour fire-rated partition compliant with Underwriters Laboratories designs U497 and U438. The framing consists of a metal runner track at the base with a minimum 1/4 inch joint sealant at the perimeter. One layer of 1 inch gypsum shaftliner board is installed on one side, paired with an acoustic blanket insulation placed within the stud cavity where required. Two layers of 5/8 inch Type X gypsum board finish the opposite side of the partition.
PARTITION - 2HR UL DESIGN: U497 UL DESIGN: U438 1/4" MIN. JOINT SEALANT ACOUSTIC BLANKET INSULATION WHERE OCCUR RUNNER TRACK 1 LAYER OF 1" GYPSUM SHAFTLINER BOARD 2 LAYERS OF 5/8" GYPSUM BOARD, TYPE X
