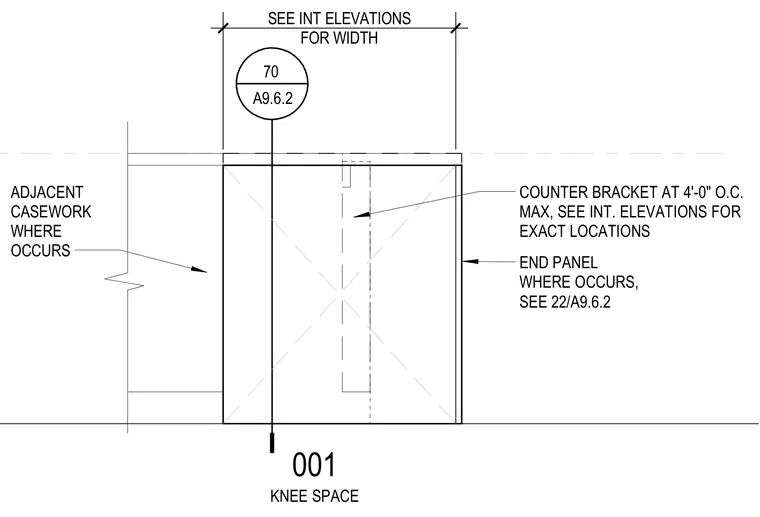

A millwork knee space assembly features counter support brackets spaced at four feet on center maximum. Adjacent casework and end panels are detailed where they occur with reference to interior elevations for exact widths and locations.
70 A9.6.2 ADJACENT CASEWORK WHERE OCCURS END PANEL WHERE OCCURS, SEE 22/A9.6.2 COUNTER BRACKET AT 4'-0" O.C. MAX, SEE INT. ELEVATIONS FOR EXACT LOCATIONS FOR WIDTH SEE INT ELEVATIONS KNEE SPACE 001
