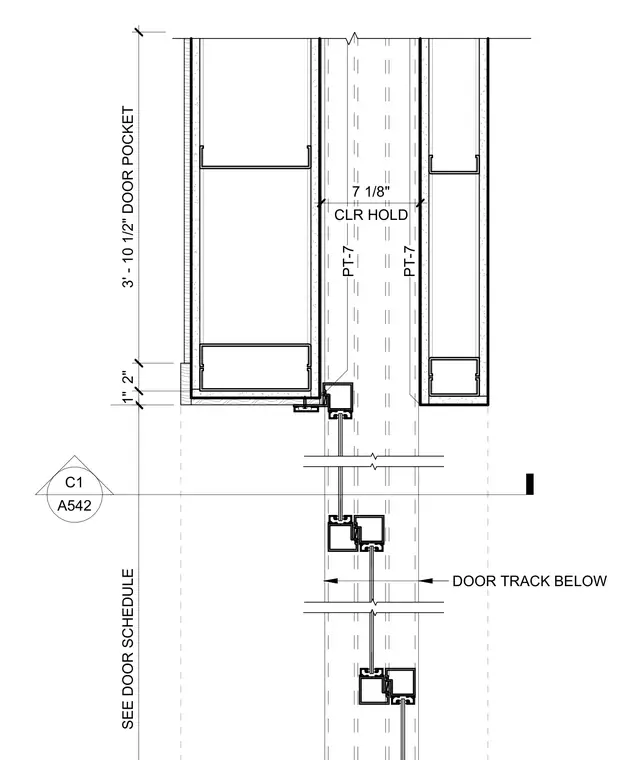

This plan detail shows a sliding door pocket assembly with a clear hold dimension of seven and one-eighth inches between paint finish PT-7 surfaces. The overall door pocket width measures three feet ten and one-half inches, with adjacent wall dimensions of one inch and two inches. The door track is located below as indicated, and the assembly references the door schedule.
PT-7 PT-7 SEE DOOR SCHEDULE 1" 2" 3' - 10 1/2" DOOR POCKET CLR HOLD 7 1/8" C1 A542 DOOR TRACK BELOW
