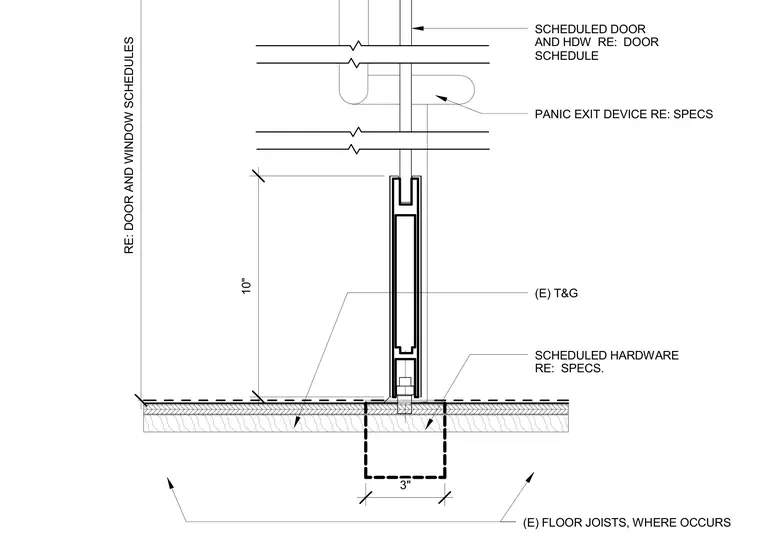

A security screening entry door head and sill assembly is detailed with existing floor joists below and scheduled hardware per specifications. The frame includes a panic exit device and door hardware coordinated with the door and window schedules. Existing tongue and groove flooring is noted where it occurs adjacent to the entrance assembly.
SCHEDULED HARDWARE RE: SPECS. SCHEDULED DOOR AND HDW RE: DOOR SCHEDULE (E) FLOOR JOISTS, WHERE OCCURS (E) T&G 3" 10" PANIC EXIT DEVICE RE: SPECS RE: DOOR AND WINDOW SCHEDULES
