Curtain Wall Corner and Structural Steel Frame Connection

Materials

Elements

Walls Curtain Walls Balconies Floors / Slabs

About this detail

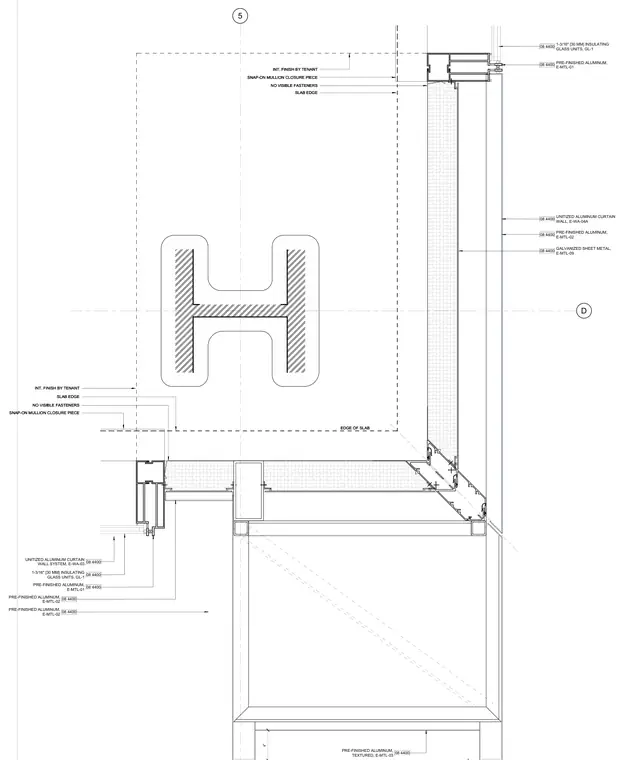

A unitized aluminum curtain wall system intersects a structural steel frame and concrete slab edge. The assembly incorporates 1-3/16 inch insulating glass units designated as GL-1, supported by pre-finished aluminum extrusions and structural framing members. A four-inch snap-on mullion closure piece provides a clean interior finish at the slab edge with no visible fasteners. Galvanized sheet metal and textured pre-finished aluminum panels complete the exterior cladding interface. Interior finishes are designated as installed by the tenant.
