A pre-fabricated mechanical curb rests on a metal roof deck and support framing, with the fully adhered single-ply roof membrane extended over the entire curb and down its inside face. A twenty-four gauge prefinished metal drip edge with fluoropolymer finish caps the top of the curb over one inch of non-curing sealant set level. The membrane is secured with bonding adhesive, a three-inch wide seam tape, and a seam plate and fastener at the base. Mechanical equipment bears directly on top of the curb.

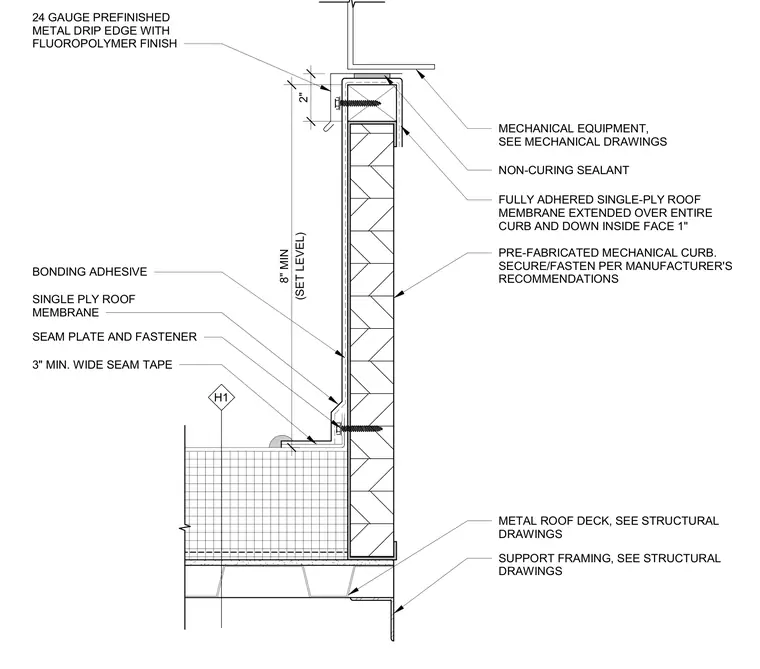

24 GAUGE PREFINISHED METAL DRIP EDGE WITH FLUOROPOLYMER FINISH PRE-FABRICATED MECHANICAL CURB. SECURE/FASTEN PER MANUFACTURER'S RECOMMENDATIONS FULLY ADHERED SINGLE-PLY ROOF MEMBRANE EXTENDED OVER ENTIRE CURB AND DOWN INSIDE FACE 1" NON-CURING SEALANT (SET LEVEL) 8" MIN 3" MIN. WIDE SEAM TAPE SEAM PLATE AND FASTENER SINGLE PLY ROOF MEMBRANE BONDING ADHESIVE 2" MECHANICAL EQUIPMENT, SEE MECHANICAL DRAWINGS H1 METAL ROOF DECK, SEE STRUCTURAL DRAWINGS SUPPORT FRAMING, SEE STRUCTURAL DRAWINGS
