Architectural · A-ZY6DD

Curtain Wall at Slab Edge and Fire-Rated Shaft Wall

Materials

Elements

Walls Curtain Walls Ceilings Floors / Slabs Expansion / Control Joints Insulation

About this detail

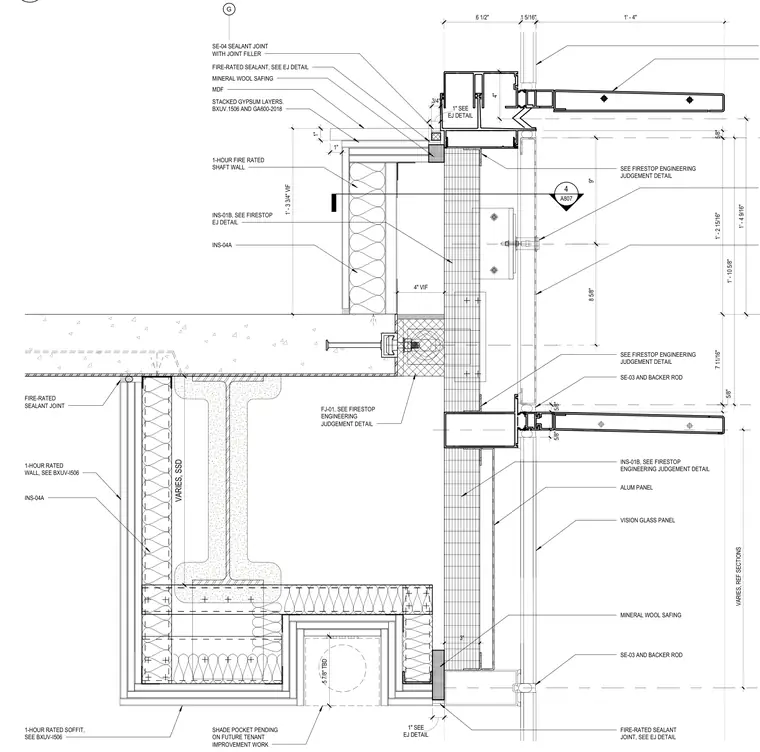

A curtain wall system meets a concrete slab edge and a one-hour fire-rated shaft wall constructed with stacked gypsum layers per UL assembly BXUV.1506 and GA600-2018. Mineral wool safing insulation and fire-rated sealant joints are detailed at the floor slab edge and expansion joint locations. An aluminum panel and vision glass panel comprise the glazing assembly, tied into a shade pocket pending future tenant improvement work. Firestop engineering judgment details and referenced sections FJ-01 and SE-03 coordinate the thermal and fire-rated transitions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
