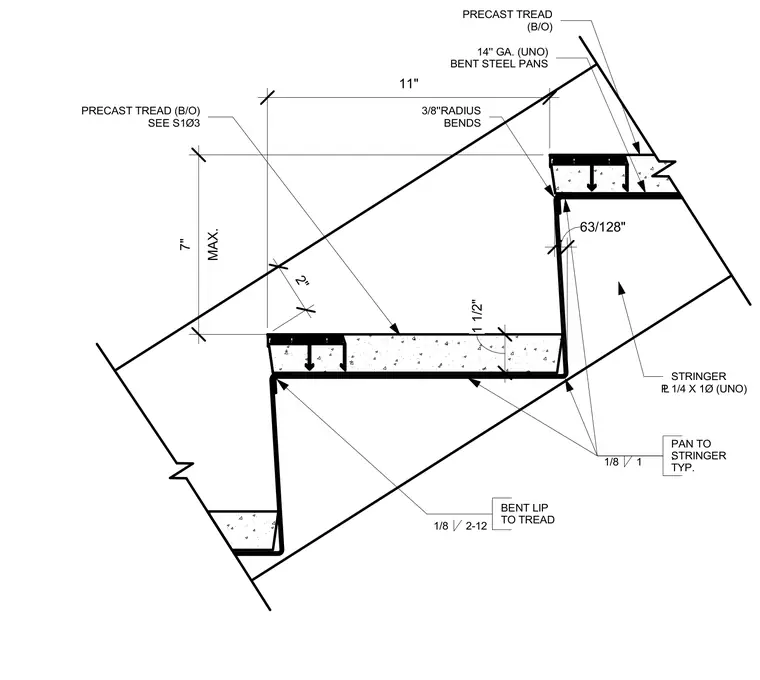

Fourteen-gauge bent steel pans with three-eighth-inch radius bends receive precast concrete treads set above stair stringers. The bent steel pans feature a bent lip to support the tread and are welded to the stringer with a one-eighth-inch fillet weld at two inches on center. The stringer consists of a quarter-inch plate unless noted otherwise. Precast treads are sized per structural sheet S103 with a maximum seven-inch rise and eleven-inch run.
MAX. 7" 11" 1 1/2" PAN TO STRINGER TYP. PRECAST TREAD (B/O) SEE S1Ø3 STRINGER 1/4 X 1Ø (UNO) 3/8''RADIUS BENDS 63/128" 14'' GA. (UNO) BENT STEEL PANS PRECAST TREAD (B/O) 2" 1/8 1 . BENT LIP TO TREAD 1/8 2-12 P L
