Architectural · A-ZXWJV

Reception Desk - 3 Drawer

Materials

Elements

About this detail

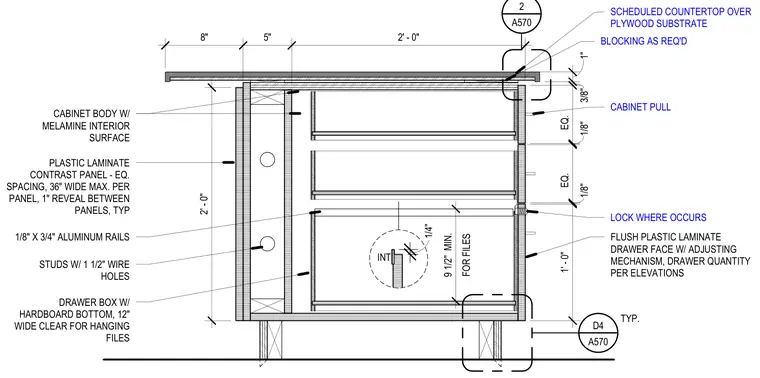

A three-drawer reception desk construction features a cabinet body with a melamine interior surface and a scheduled countertop over a plywood substrate. The exterior is finished with plastic laminate contrast panels spaced with equal intervals up to thirty-six inches wide and one-inch reveals between panels. The drawer boxes include hardboard bottoms and measure twelve inches wide clear for hanging files, fitted with one-eighth by three-quarter inch aluminum rails. Flush plastic laminate drawer faces include adjusting mechanisms and cabinet pulls, with locks installed where indicated. The desk frame utilizes studs with one and one-half inch wire holes and required blocking.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
