Floor Identification Sign

Elements

About this detail

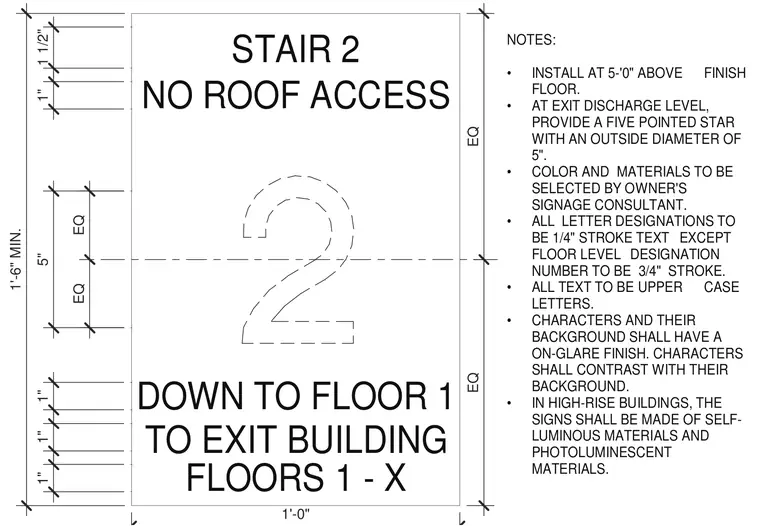

This interior floor identification sign specifies layouts for emergency stairwells with text reading STAIR 2, NO ROOF ACCESS, DOWN TO FLOOR 1 TO EXIT BUILDING, and FLOORS 1 - X. The layout is dimensioned at one foot zero inches wide by one foot six inches minimum in height with specific text stroke sizes and spacing requirements. Installation notes require mounting at five feet zero inches above finish floor with contrasting non-glare finish characters and materials selected by the owner's signage consultant. Exit discharge levels require a five-pointed star with a five-inch outside diameter, and high-rise buildings mandate self-luminous and photoluminescent materials.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
